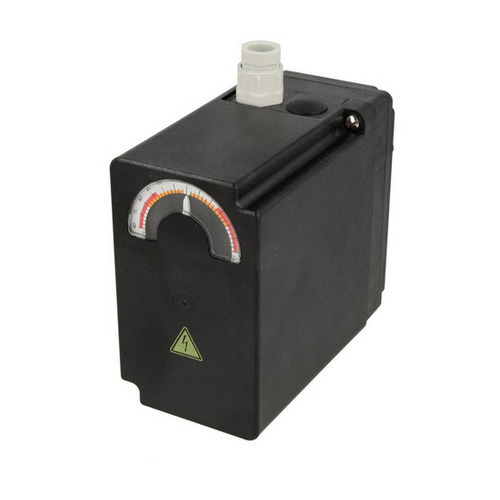

Honeywell Damper Motor LKS 160

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Honeywell Damper Motor LKS 160 Specification

Features
Spring Return, Manual Override, Position Indicator

Efficacy
High

Noise Level
<50 dBA

Power Rating
7.5 W

Starting Type
Direct On Line

Sealed Type
IP54

Voltage
230 V AC

Poles Number
2 Pole

Motor Type
Synchronous Motor

Rated Frequency
50/60 Hz

Bearing Type
Ball Bearing

Current Type
AC

Rated Voltage
230 V AC

Pressure
Standard Atmospheric

Torque
8 Nm

Horse Power
0.01 HP

Product Type
Damper Actuator

Output Power
8 Nm

Frequency (MHz)
50/60 Hz

Protect Feature
Overload Protection

Phase
Single Phase

Speed
150 sec/90

Power
7.5 W

Color
Grey

Dimension (L*W*H)
145 x 115 x 58 mm

Weight
1.8 kg

Shaft Diameter
10 mm

Mounting Type
Direct Mount

IP Rating
IP54

Honeywell Damper Motor LKS 160 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AHMEDABAD

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Cash Advance (CA)

Packaging Details
DEPEND ON MATERIAL

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ICE

About Honeywell Damper Motor LKS 160

Our adeptness in this domain has enabled us to offer a broad gamut of Honeywell Damper Motor. The provided motor is widely demanded for ac motoring controlling services. The offered motor is accurately manufactured using utmost quality basic components with the help of cutting-edge technique in line with set industrial quality standards at our in-house production unit. Furthermore, we provide Honeywell Damper Motor in different technical specifications at market leading prices.

Features:

Simple and compact assembly
Unmatched performance
Low maintenance
High accuracy and stability

Honeywell Damper Motor LKS 160

Unitech Combustion Ahmadabad offering Honeywell make Products like Damper motor, Modulating motor, Sequence controller, Actuator, Combi valve, Air and Gas butterfly valve, etc.

We have all in stock with comparative price.
We have LKS 120, LKS 160, LKS 210, etc in stock.

Product details

Voltage	230 , 110 V AC
Model No.	160-44 A 5-34 S8.P1.1
Power	230 , 110 V
Motor Type	AC

Reliable Ventilation Control

The Honeywell LKS 160 damper motor is engineered for consistent performance in HVAC systems, optimally regulating airflow with its 90-degree rotation and high-torque output. Its robust construction and IP54 sealing safeguard the internals, enabling operation in demanding environments. Direct mounting simplifies installation, while mechanical position indication allows for precise manual monitoring during setup and maintenance.

User-Friendly Operation and Features

Equipped with spring return and manual override, the LKS 160 supports effortless operation during power loss or maintenance. The on/off control signal makes it compatible with standard building automation systems. Its quiet function, with noise below 50 dBA, and clear position indicator, enhance both user convenience and building comfort.

FAQs of Honeywell Damper Motor LKS 160:

Q: How is the Honeywell Damper Motor LKS 160 typically used in HVAC systems?

A: The LKS 160 is primarily utilized in HVAC systems for controlling dampers in ventilation and air distribution channels. Its 90-degree rotation and 8 Nm torque ensure precise and reliable damper operation, improving air management and system efficiency.

Q: What are the key benefits of the LKS 160 damper actuator?

A: Key advantages include high torque output, overload protection, IP54-rated dust and moisture resistance, spring return for safety, manual override, quiet operation (<50 dBA), and a clear mechanical position indicator for easy monitoring.

Q: When should the spring return and manual override features be used?

A: Spring return is engaged automatically during power outages, closing or opening the damper to a safe position. Manual override allows maintenance personnel to manually adjust damper position when system power is unavailable or during setup.

Q: Where can the LKS 160 be installed?

A: The actuator is designed for direct mounting on damper shafts in commercial, industrial, or residential HVAC units. Its IP54 housing ensures suitability for standard indoor atmospheric conditions, protecting it from dust and water splashes.

Q: What process does the LKS 160 follow for damper control?

A: Upon receiving an on/off signal, the synchronous motor drives the damper shaft to the required position within 150 seconds for a 90 rotation. The spring return ensures the damper returns automatically to its default position in case of power failure.

Q: What is the efficacy and power requirement of this actuator?

A: The LKS 160 provides high efficiency with a power rating of 7.5 W, operating reliably at 230 V AC and rated frequency of 50/60 Hz, making it energy-efficient and suitable for continuous operation cycles.
