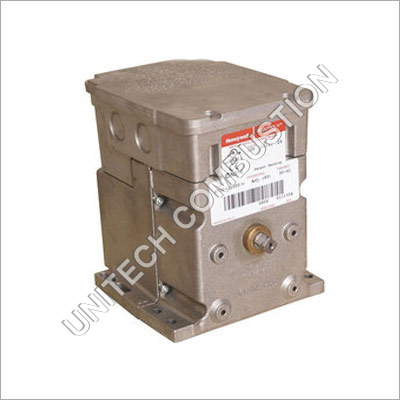

Honeywell Modulating Motor M 6284 C 10000

Send Inquiry

Request To Call Back

Honeywell Modulating Motor M 6284 C 10000

Get a Price/Quote

Honeywell Modulating Motor M 6284 C 10000 Specification

Horse Power
0.025 HP

Rated Voltage
230V

Power Rating
15 VA

Sealed Type
Enclosed

Motor Type
Synchronous motor

Starting Type
Direct start

Bearing Type
Ball bearing

Efficacy
High efficiency

Voltage
230V AC

Poles Number
2

Current Type
AC

Noise Level
<45 dB

Features
Spring return, manual clutch, position indicator, rugged design, adjustable stroke

Rated Frequency
50/60 Hz

Torque
18 Nm

Product Type
Modulating Damper Actuator

Output Power
18 Nm (at rated torque)

Frequency (MHz)
50/60

Protect Feature
Thermal overload protection

Phase
Single Phase

Speed
150 sec/90

Power
15 VA

Color
Grey

Dimension (L*W*H)
190mm x 113mm x 141mm

Weight
3.5 kg

Shaft Diameter
12 mm

Mounting Type
Foot mounted

IP Rating
IP54

Honeywell Modulating Motor M 6284 C 10000 Trade Information

FOB Port
AHMEDABAD

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability

Delivery Time
Ex Stock Days

Main Export Market(s)
Australia, South America, Western Europe, Middle East, Central America, Asia, Eastern Europe, North America, Africa

Main Domestic Market
All India

About Honeywell Modulating Motor M 6284 C 10000

Honeywell Modulating Motor M 7284 C 1000

Unitech Combustion, Ahmedabad offering Honeywell makes Servo motors in bulk stock.

We have following honey Well Servo Motors in stock.

Honeywell burner servo motor LKS210-21,
Honeywell burner servo motor SQN31. 221A2700,
Honeywell burner servo motor LKS210-10
Honeywell burner servo motor MT 4003C 1005,
Honeywell burner servo motor MT 4003C 1021,
Honeywell burner servo motor M 6284F 1013,
Honeywell burner servo motor M 7284C 1000,
Honeywell burner servo motor M 6284C 1010,
Honeywell burner servo motor M 7284A 1004,
Honeywell burner servo motor M 6284A 1048,
Honeywell burner servo motor M 6284C 1010,
Honeywell burner servo motor M 6284A 1055,
Honeywell burner servo motor M 7284A 1012,
Honeywell burner servo motor M 7284C 1000,
Honeywell burner servo motor M7284Q1009,
Honeywell burner servo motor M7294Q1007,
Honeywell burner servo motor M9184D1021,
Honeywell burner servo motor ML7421B1023,
Honeywell burner servo motor M 9484F 1031,
Honeywell burner servo motor M7284Q1009,
Honeywell burner servo motor M 7284C 1091.

Durable and Versatile Design

Built with a rugged, enclosed housing (IP54 rated) and universal clamp shaft adaptation, the Honeywell M 6284 C 10000 is well-suited for a wide range of damper and valve control applications. It features a reliable ball bearing system, a spring return mechanism, and a manual clutch for added versatility and safety during installation and maintenance.

Precision Control and Efficiency

Delivering a rated output torque of 18 Nm and high efficiency, this synchronous motor operates at 230V AC and completes a 90 stroke in 150 seconds. The devices position indicator ensures accurate monitoring, while its adjustable stroke enables customization for various control needs in HVAC systems.

FAQs of Honeywell Modulating Motor M 6284 C 10000:

Q: How is the Honeywell Modulating Motor M 6284 C 10000 typically installed in HVAC systems?

A: This modulating motor is usually foot mounted and uses a universal clamp for shaft adaptation, accommodating a 12 mm diameter shaft. Ensure the installation surface is level and all electrical connections comply with local regulations.

Q: What applications is this modulating motor suitable for?

A: It is ideal for controlling dampers and valves in heating, ventilation, and air conditioning (HVAC) systems, thanks to its precise positioning, adjustable stroke, and high efficiency.

Q: When should the manual clutch and position indicator be used?

A: The manual clutch is helpful during installation or maintenance, allowing manual adjustment of the damper or valve position. The position indicator provides visual feedback of the current shaft angle for precise calibration and monitoring.

Q: Where can this modulating motor be operated safely?

A: With an IP54 rating and enclosed design, it can be safely used in dusty or humid environments typical of industrial, commercial, and institutional HVAC installations.

Q: What is the benefit of the thermal overload protection feature?

A: The thermal overload protection automatically cuts off power if overheating is detected, protecting the motor and connected system from damage and prolonging service life.

Q: How does the spring return mechanism work in this motor?

A: The spring return feature ensures that the actuator returns to its original position during power loss, enhancing safety and system reliability in critical HVAC applications.
